Wind power engineering - 3D Measurement of the casting

The customer is a related company that produces wind power equipment. The large generator head which they have needs to be measured, and it is about 3 meters in diameter. It requires complete data collection including the bottom with an accuracy of ±3mm. The accuracy is used for main measurement of dimensions, and then output an inspection reports, and finally save data. The data is used for connection with customers.

Solution

RigelScan × MarvelShot

First, the MarvelShot is used to collect the markers from the inside of the bottom circle to the outside. MarvelShot uses the principle of photogrammetry to accurately measure the markers on the surface, thereby improving the volume accuracy of the handheld scanner.

The large-scale scanning mode is combined with the standard mode of Rigel Scan Elite to collect complete data on the surface of the casting. Due to the large size of the workpiece, the customer required the higher resolution which is 0.8mm. Because of the large amount of scanned data, after collecting and scanning multiple projects, the overall markers collected by MarvelShot are merged, and the scanning of large workpieces was finished.

↑ The 3D scanning data of the casting

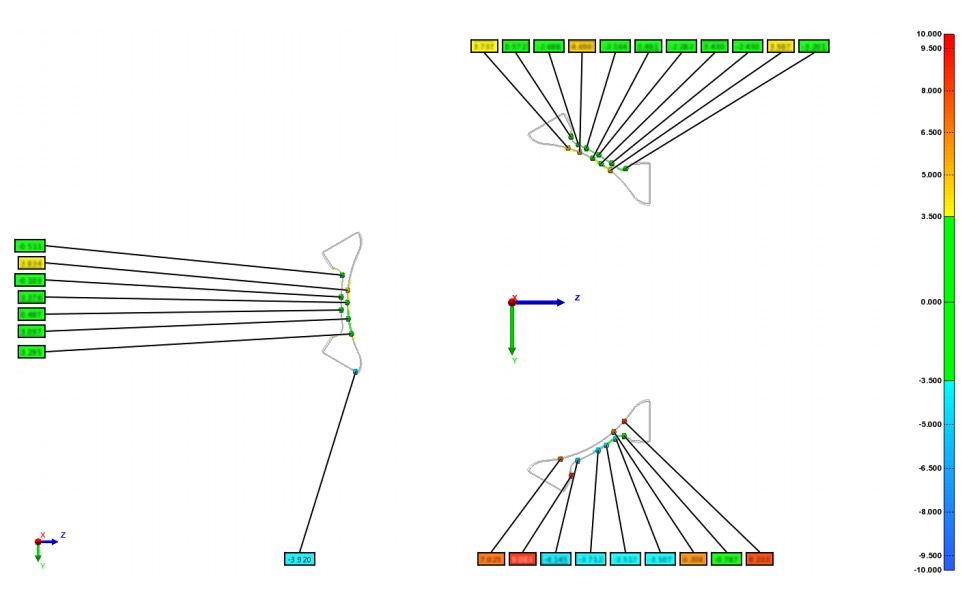

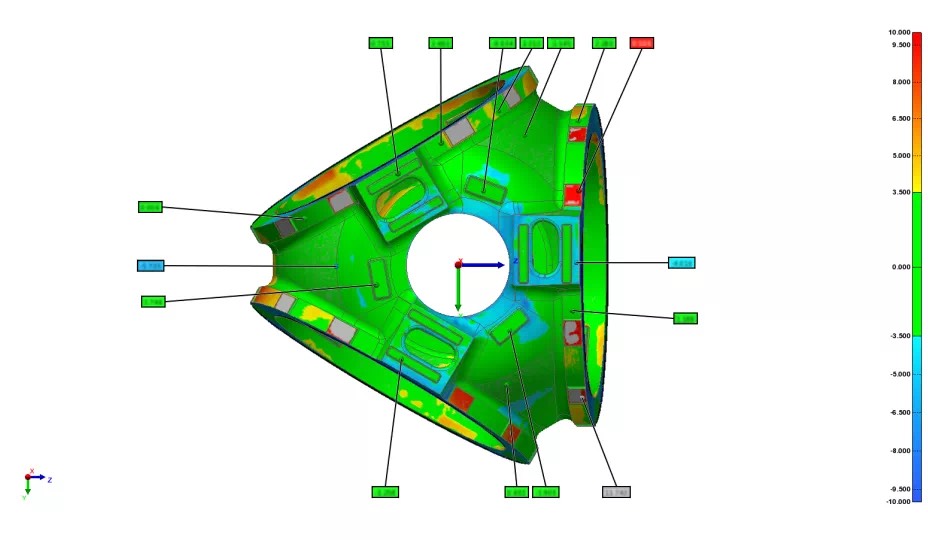

Import the data into the 3D software, PolyWorks, compare and analyze with the original data model, and output the inspection report.

The features of program

›› High precision, low cost

The unique accurate blue light technology of MarvelShot is far superior to white light or infrared light, and it can guarantee superior accuracy and repeatability at a very low cost.

›› View the calculation results in real time

MarvelShot is paired with a ZG Technology 3D Scanner, you can view the calculation results in real time while taking pictures, and export the markers after taking pictures, which can be directly used for 3D scanning. The combination can improve the accuracy, and the structural dimensions and the geometric tolerances can be collected in all directions at the same time.

For especially non-standard large workpieces, no matter how complex the structure is, the company can quickly design and produce solutions to meet customer needs with the rich experience.
