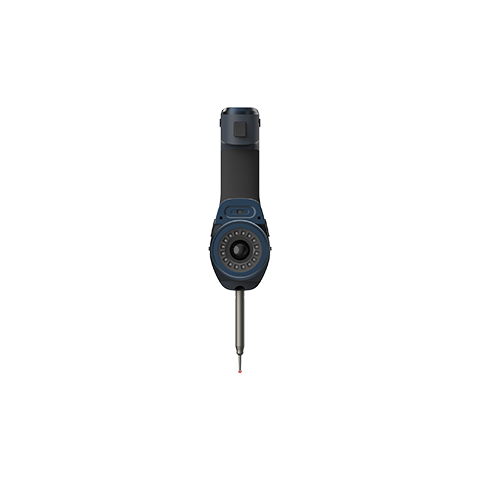

MarvelProbe

MarvelProbe, as an independent product, is compatible with photogrammetry modules, and it can be used to improve the volumetric accuracy of handheld scanners in large scenes. It also adds contact measurement functions to provide a new, more flexible and portable measurement method for production of molds and inspection of tools.

  1. Inquiry
  2. Prev
  3. Next

Product Feature

  • Probe-contact Measurment : To measure surface, key geometric size and GD&T accurately and efficiently
  • Built-in Photogrammetry : To improve volumetric accuracy of handheld scanner in large scenarios
  • Reverse-positioning Technology : To measure different parts continuously under same portable panel or pre-calibrated room
  • MarvelProbe Nest : To make it more convenient to use and store

Product Specification

MODEL MarvelProbe
MEASUREMENT ACCURACY Up to 0.03mm
Single Point Repeatability 0.03mm
VOLUMETRIC ACCURACY (CMM) 0.05mm+0.02mm/m
VOLUMETRIC ACCURACY(Photogrammetry for ZG Portable 3D Scanner) 0.02mm+0.02mm/m
DEPTH OF FIELD 600mm-5000mm
WEIGHT 500g
SIZE 65x130x260mm
Probe Modules
item M4D3-1805-2-13 M4D6-17-405-1303
Probe Head Material Ruby
Probe Head Diameter 3.0mm/6.0mm
Extension Bar Length 30、60、100mm
