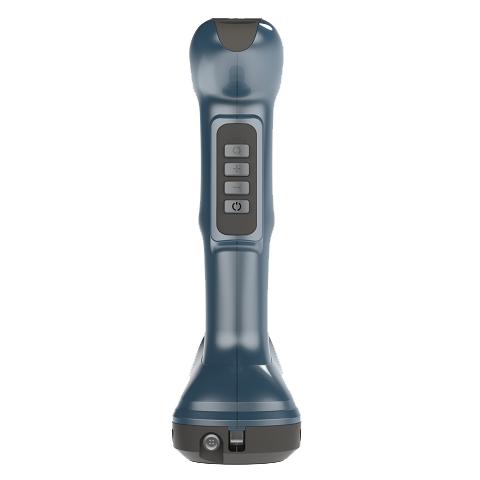

INFINITY X Rigel 3D Blue Scanner

INFINITY X Rigel 3D Blue Scanner can realize fine scanning of fine features with an accuracy of up to 0.0 2mm, and it has been certified by the International Measurement Center.

It adopts advanced blue light technology, which can easily achieve data on light surfaces. At the same time, it can be equipped with an optional expansion of wireless module to realize easy and flexible scanning of large-size workpieces and make users have a more perfect 3D scanning experience.

Product Feature

Ultra high accuracy: up to 0.02mm
Fine scanning: scan precise workpieces to obtain perfect data.
Dynamic scanning technology: the workpieces moves freely and the scanning accuracy isn’t affected.
Strong adaptability: easy to obtain data on the highlight surfaces.
Easy to learn and use: easy to operate, you can learn in half an hour
Wireless operation: easy and flexible scanning for large size workpieces.

Product Specification

Model	RigelScan™		RigelScan Elite™
Scan mode	Standard mode	Fine mode	Standard mode	Fine mode
Measurement rate	205,000 times/s	320,000 times/s	480,000 times/s	320,000 times/s
Scanning area	225×250mm		275×250mm
Light source	6 laser lines（+ extra 1 line for deep holes，+ extra 5 lines for detail）		14 laser lines (+ extra 1 line for deep holes，+ extra 5 lines for detail）
Laser class	CLASS II (eye-safe)
Resolution	0.05mm	0.03mm	0.04mm	0.02mm
Accuracy	Up to 0.03mm	Up to 0.02mm	Up to 0.02mm	Up to 0.01mm
Volume accuracy	0.03+0.06mm/m	--	0.02+0.06mm/m	--
Volume accuracy (with PHOTOSHOT)	0.03+0.06mm/m	--	0.02+0.06mm/m	--
Stand-off distance	300mm	150mm	0.02+0.025mm/m	--
Depth of field	250mm	100mm	300mm	150mm
Certifications	VDI/VDE 2634-Part 3 Optical 3d-measuring Systems ISO/IEC17025 EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive)
