SCANTECH SIMSCAN-E Intelligent, Wireless and Palm-Sized 3D Scanner

The SIMSCAN-E is an intelligent, wireless, and palm-sized 3D scanner that combines a lightweight design with exceptional performance. Featuring advanced edge computing and wireless data transfer, it sets a new standard for flexible, wireless and free 3D scanning. With robust algorithm and high-definition industrial cameras, SIMSCAN-E can capture 3D data with remarkable precision and efficiency. Capable of capturing up to 6.3 million measurements per second, it features three scanning modes: ultra-fast, hyperfine, and deep hole. This versatility allows it to handle a wide range of tasks effortlessly, from scanning in tight spaces to measuring complex structures.

Despite the numerous opportunities for data collection in process improvements, challenges such as time constraints, object size, and limited accessibility often hinder the ability to achieve accurate and undamaged scan results. However, the SIMCAN-E is specifically designed to address these issues. Its compact form and flexible operation make it ideal for scanning in confined spaces, ensuring high-precision results even in complex or hard-to-reach areas.

Compact and Wireless

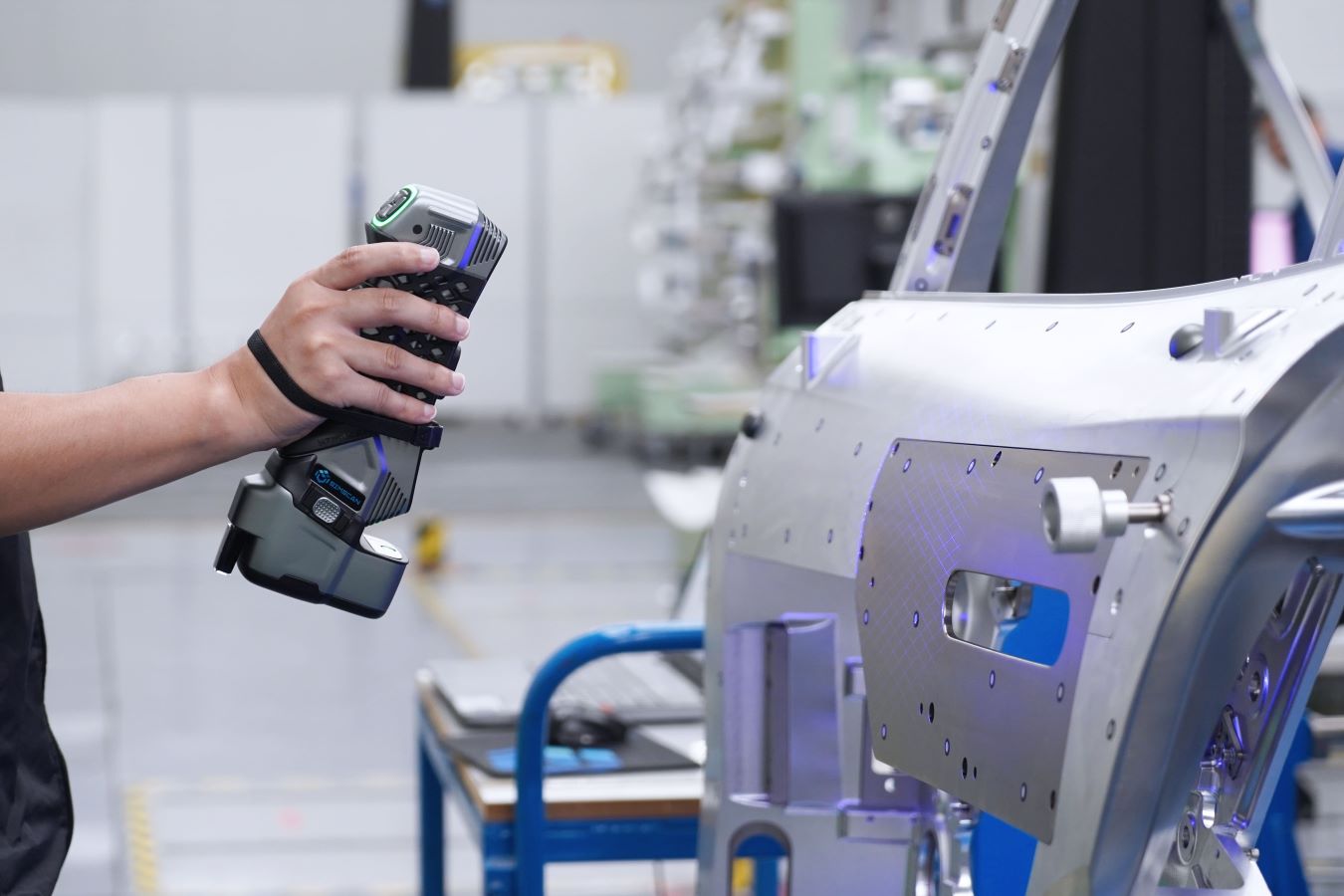

Weighing just 600 g and measuring 203 × 80 × 44 mm, the SIMSCAN-E portable 3D scanner offers unmatched ease for one-handed scanning. Enjoy robust data processing and say goodbye to tangled cables. With SIMSCAN-E’s sophisticated edge computing and wireless data transfer, users are assured of freedom and flexibility for every scan. Whether you’re 3D scanning on the complex shopfloor, at height, or outdoors without access to electricity, nothing can hold you back.

Equipped with high-capacity batteries, the SIMSCAN-E ensures extended operation time. Its dual-power design allows for effortless battery swaps without interrupting the scanning workflow. An intelligent battery level indicator keeps you informed throughout the scanning process. Its detachable charging base allows for seamless switching between wireless and wired modes, adapting to different scenarios and needs.

Fast, Smooth, and Efficient

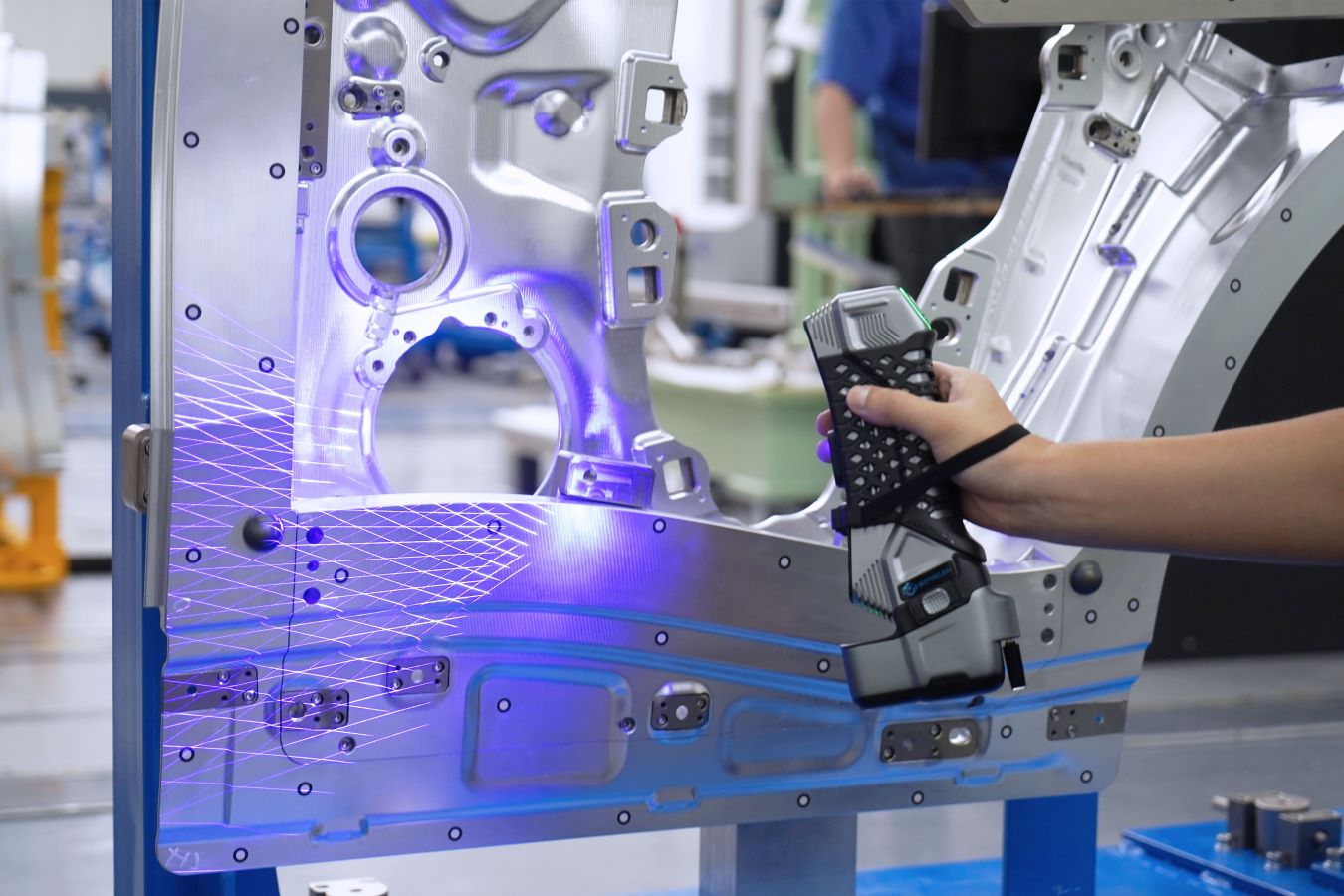

Thanks to its advanced algorithm, SIMSCAN-E delivers a high measurement rate of 6.3 million measurements/s. Coupled with 81 blue laser lines and a 180-FPS frame rate, it ensures efficient and smooth scanning experiences.

The high measurement rate enables rapid data acquisition, capturing intricate details and complex geometries with exceptional precision. The 81 blue laser lines provide comprehensive coverage and enhanced accuracy, minimizing the need for multiple passes or redundant scans. The 180 FPS frame rate ensures high clarity and scan quality, even in detalled and complex scenarios.

xceptional Precision and Detail

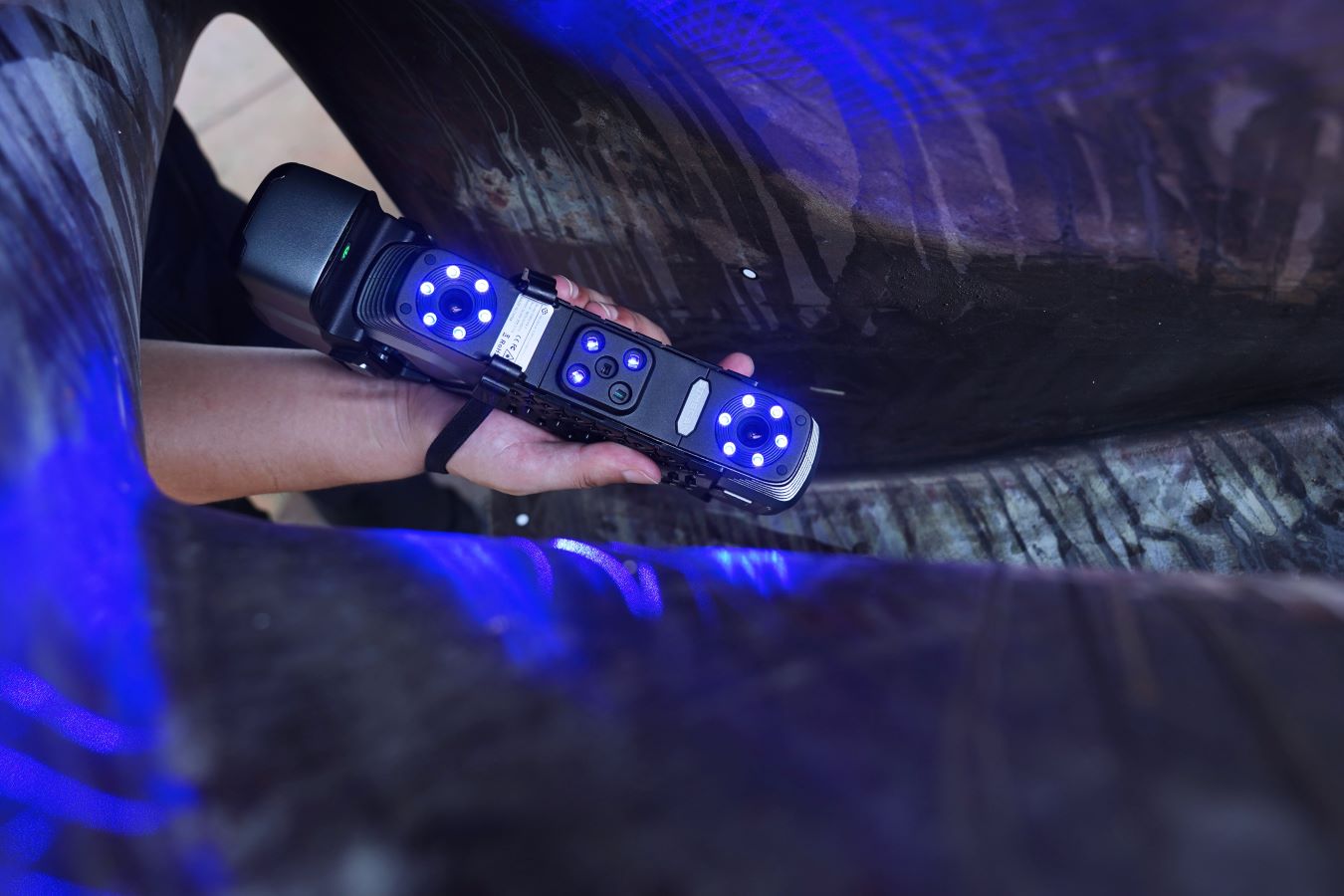

IMSCAN-E is equipped with advanced industrial cameras and sophisticated image enhancement algorithms, designed to capture every intricate feature with exceptional precision. Its sub-pixel feature extraction technology ensures that even the smallest details are recorded accurately, making it ideal for applications requiring meticulous detail and fine resolution.

xcellent for Narrow Spaces

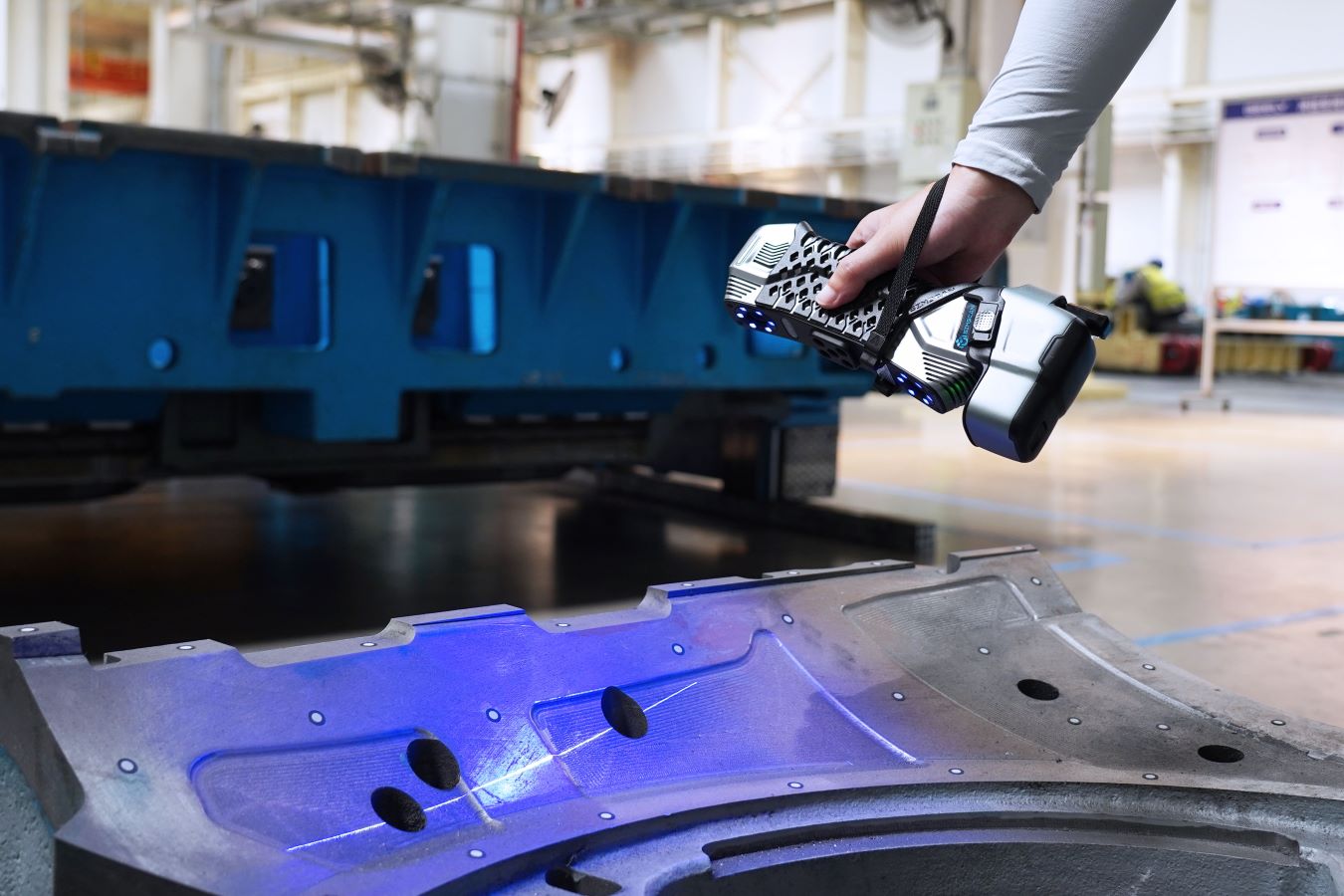

Flexible and lightweight, this portable 3D scanner supports instant scanning in various environments. Its short-distance camera design, with a steep view angle, greatly enhances the ability to scan hidden areas such as gaps, slots, deep holes, and channels. This significantly improves data integrity, providing more complete 3D data for further design, inspection, analysis, and more.

Diverse Operating Modes

Users can switch between different scanning modes, handling parts of various materials, shapes, and sizes to meet diverse needs for data acquisition and inspection.

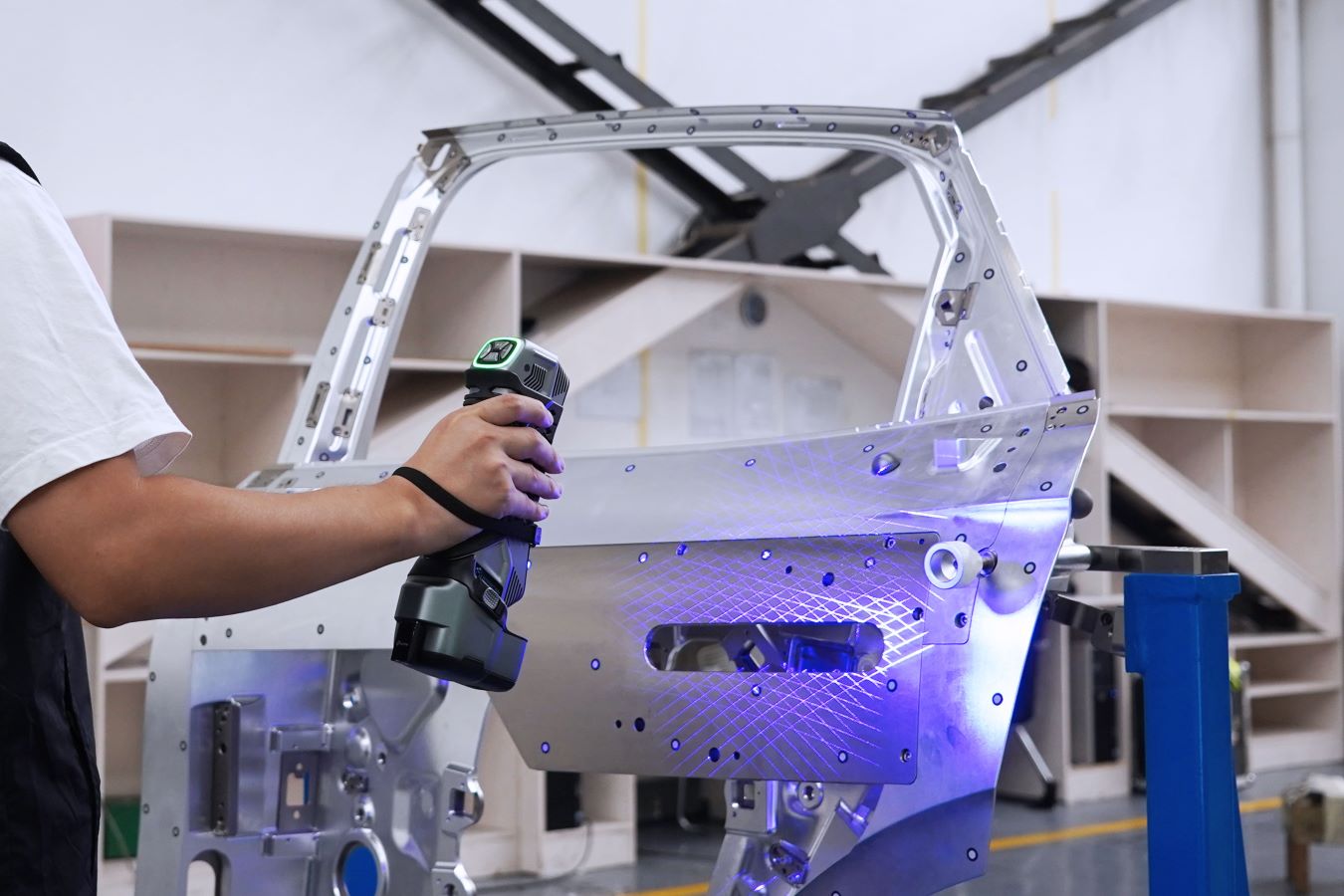

  Ultra-fast scanning

63 blue laser lines for efficient scanning to evaluate the geometry and dimensions of parts quickly.。

17 parallel blue laser lines for swift detail capturing of intricate features and complex structures.

      Hyperfine scanning

  Deep hole scanning

1 blue laser line for measuring deep holes and hard-to-reach areas.

Driven by Powerful and Efficient Software

Smart Guide: DefinSight's customized smart guide follows a user-centered design, making it easy for both beginners and experienced users to get started. Users can simplify complex parameter settings into linear workflows to make it accessible for novice users.

Real-time Meshing: The latest meshing algorithm offers fast mesh generation in real time, delivering high-quality data and good visual representation.

Magic Button Control: Its optimized magic button control allows for customized and intuitive operations, which brings intelligent and efficient 3D scanning to the next level.
